BOLZANO

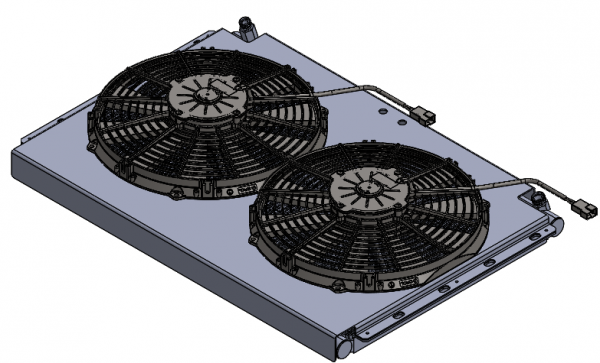

Ventilated condenser model BOLZANO consisting of:
- Aluminium microchannel condenser with P3.5mm fin pitch.
- Sheet metal air conveyor prepared with fixing holes.
- 305 mm axial electric fan with reinforced motor.
Product specifications
| Version code 12V | 025080.12V |
| Version code 24V | 025080:24V |
| H | 456 |
| L | 687 |
| W | 110 |
| Volt | 12V - 24V |
| Current absorption (Amp) | 12V=16A - 24V=8,5A |
| Heating capacity | A 40° = Kw 13 |
| Type | Micro channel aluminum capacitor |
| Connectors | 3/4"-16UNF-2A / 5/8"-18UNF-2A |
